Lockwood Loudspeakers

Mini

The broadcast monitor, at bookshelf scale.

The Mini is a two-way stand-mount built around a 10-inch point-source driver, originally developed for accurate monitoring where a full-size cabinet would not fit. It has been used for exactly that by the BBC, ITV and Neve Electronics. Despite the compact enclosure it delivers impressive dynamics, a sublime midrange and a beautifully natural high-frequency presentation, with the reach-out-and-touch imaging that made Lockwood's larger monitors famous.

At a Glance

●10 inch (295 mm) Lockwood Green HPD/SL

●2-way point-source design

●40–20,000 Hz

●92 dB sensitivity (2.83 Vrms, 1 m)

●8 Ω impedance

●Infinite baffle 18 mm birch ply cabinet

●Lockwood A Series crossover

●398 × 348 × 560 mm (W × D × H)

●18.5 kg each

●Walnut veneer finish

●Handbuilt in the UK

Key Features

Point-Source Accuracy

A 10-inch point-source drive unit capable of impressive dynamics, a sublime midrange and a beautifully natural high-frequency presentation.

Broadcast Heritage

Developed for accurate, reliable monitoring in professional environments and trusted for it by the BBC, ITV and Neve Electronics.

Quality Construction

Hand-built from premium components with a crossover design that delivers an exceptionally clean signal path.

Technologies Inside

Point-Source Drive Units

One driver. One point in space.

Every Lockwood is built around a single Lockwood Green HPD/SL drive unit in which the high and low frequencies radiate from the same point. Nothing is split across two boxes of air, so the music arrives at the listening seat as one coherent event — with the time coherence, low colouration and natural vocal reproduction that made these cabinets the studio reference.

The point-source principle is what a monitor needs and what most domestic speakers give up. Because the tweeter sits at the acoustic centre of the bass cone, the two arrive together at every seat in the room rather than only on one narrow axis — which is why engineers could trust a pair of Lockwoods to tell them the truth about a mix. The driver is made in four sizes across the range: 15 inch (385 mm) in the Major, LE1 and Academy II, 12 inch (315 mm) in the Academy 1, 10 inch (295 mm) in the Mini, and a 5 inch (127 mm) Alnico unit in the Mini Major and the Universal Stanley models.

A Series Crossover

Hand-built, and kept out of the way.

Every model in the range uses the Lockwood A Series crossover — hand-built from premium components and wired internally with OFC cable. The design goal is a signal path short and clean enough that the drive unit is the only thing shaping the sound.

Birch Ply Cabinets

18 mm birch ply, built in the UK.

Cabinets are made from 18 mm birchwood ply using construction techniques refined over nearly a century — vented on the Major and LE1, infinite baffle elsewhere — then finished in walnut veneer, or in any Pantone colour on the Universal Stanley models. The enclosure is treated as part of the acoustic design rather than a box to put a driver in.

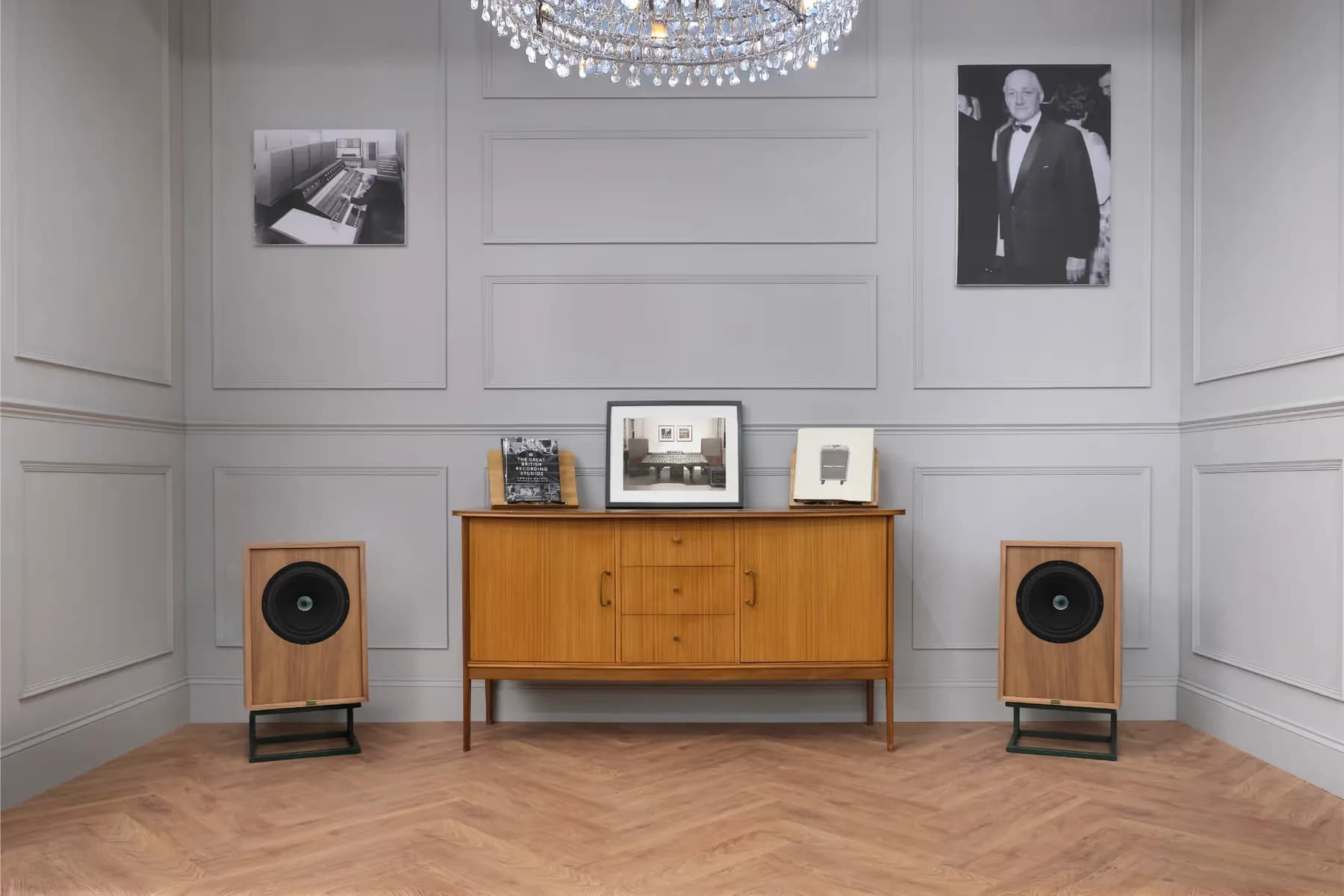

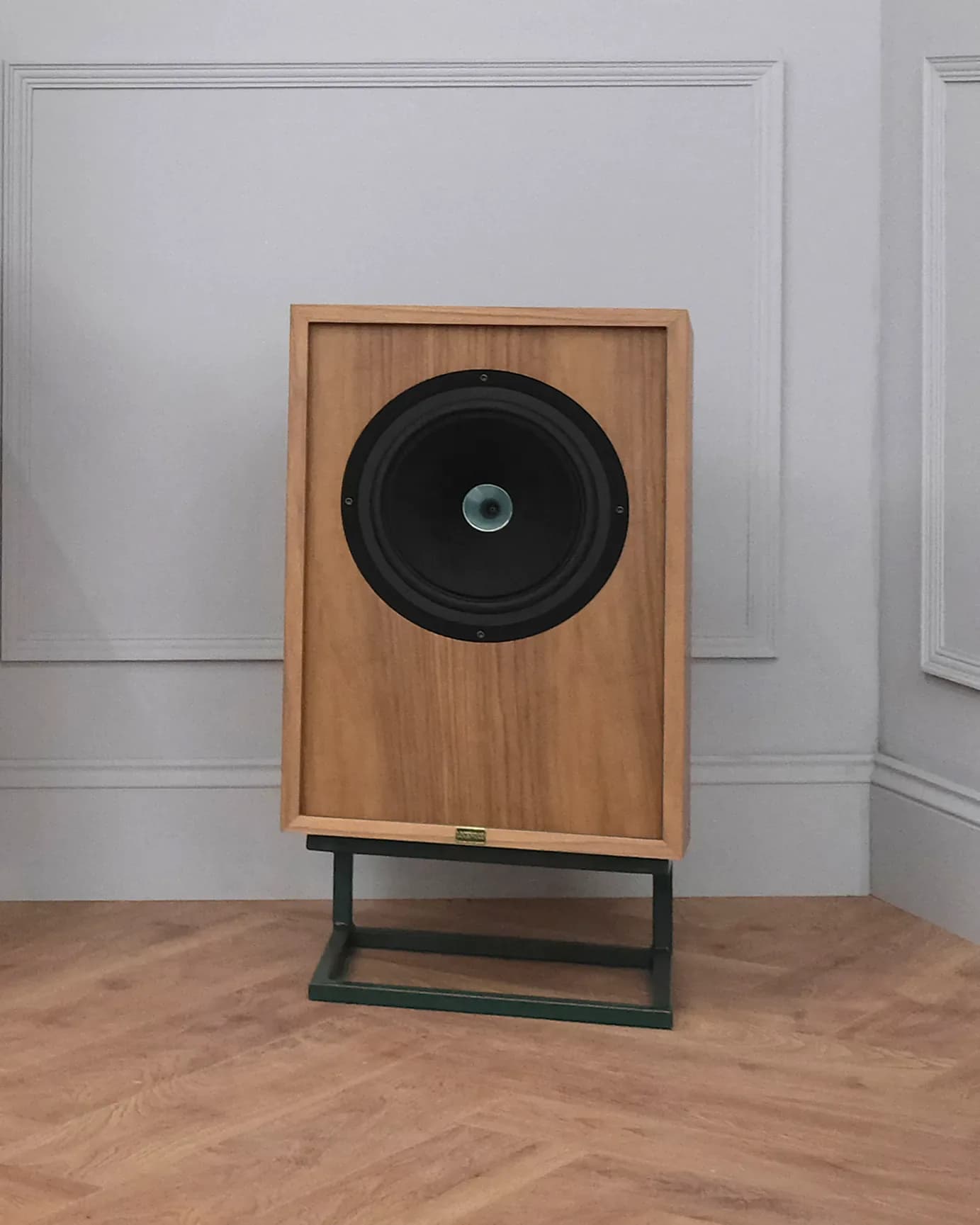

Gallery

A closer look at the Mini.

Experience the Mini

Visit our showroom for a personal demonstration. Hear the difference for yourself.

Book a Demo Visit Lockwood

For complete specifications and technical details, visit the official Lockwood website.
